Product Showcase

Hurakan 3D Printer

Out-of-the-Box Klipper Printer

Official cooperation

Remote printing

Adjustable heat bed

Automatic leveling

Material break detection

Upgradable

Dual-Tone Colors & Mechanical Style

The dual-color design makes it unique and recognizable. Rigid lines fuse mechanical elements to create a sleek and modern 'high-tech' look.

Venting Grille

The venting grilles situated on the base and print head add to the printer's unique look while serving the practical function of improving heat dissipation efficiency and reducing weight.

BTT Manta M4P+CB1

The Manta M4P control board and the CB1 core both are of the latest design which enables Hurakan to run Klipper while also supporting Marlin.

Klipper is Ready

Klipper (an improvement in 3D-printer firmware) has been pre-installed on the Hurakan, allowing you to leave out complicated installation procedures while enjoying speed, precision and convenience.

Enjoy Wireless Printing

The built-in WiFi module makes it easier for users to print, pause, check printing progress, and adjust various printing parameters using the mainsail interface. Ensure that the control device and printer are connected to the same WiFi network.

BIQU MicroProbe

The self-developed auto leveling sensor is tiny and lightweight at only 6g. It can be used over 10 million times while maintaining a high precision leveling capability.

Quiet 3D Printing

The Harakan uses an ultra-silent motor driver IC known as TMC2209 which significantly reduces printing noise.

Choose the Part to Heat

Adjust the heated area of the bed with a simple flick of a switch. Save energy and help protect the environment.
●100W- for the central part of the bed (red light on).
●240W- for the whole bed (both blue and red lights on).

Filament Runout Sensor

The filament runout sensor allows printer to automatically pause a print if filament runs out or break, therefore saving time and filament.

Light up Your Prints

An RBG light is fully customizable and beautifully designed to illuminate your prints in the dark, providing a full, 16.8M color control via the web interface or display screen.

Get Start Quickly

Given the modular design, assembling the printer is fast and fun!

01 - Dual USB Ports
A USB flash drive can be used to print without an internet connection. A USB plug and play camera can be connected for wireless monitoring.

02 - Power Supply Optional
Suitable for different levels of voltage. 100-120V/200-240V.

03 - RJ45 Port
Offers a choice of a more reliable wired network connection.
*Note: This is a Gigabit Ethernet port. Currently the CB1 installed on Hurakan only supports 100M Ethernet. Should you prefer to experience Gigabit Ethernet, replace the CB1 with the CM4.

04 - SPI Interface
Designed to connect an ADXL345 accelerometer to enable Klipper's Resonance Compensation for a print with less ringing.

Dimensions & Specs

3D Printer Name

BIQU Hurakan

3D Printer Dimensions

480x470x482mm

Print Head

1 PC

Nozzle Diameter

Standard 0.4mm

Firmware

Klipper

Slicing Software Compatibility

Cura/Repetier-Host/Simplify 3D...

Output Voltage

24V

Heated Bed Power

100W/240W

Maximum Temperature of Nozzle

260℃

Suggested Printing Speed

60mm/s

Filament

PLA/ABS/PETG...(Any material with print temp lower than 260℃, including flexible filament with 95A stillness.)

Build Volume

220x220x270mm

Layer Thickness

0.1mm-0.3mm

Printing Accuracy

±0.05mm

File Format

G-code

Printing Method

USB Drive/LAN Controlled

Rated Power

280W

Max Temperature of Heated Bed

100℃

Default Speed Limit (Firmware)

180mm/s

Filament Runout Detection

Standard Feature

Rated Voltage

100-120V/200-240V
50/60 Hz

Packaging List

Note: Above are schematic diagrams of products, accessories, user interfaces, etc., for reference only. Please refer to the actual product since product updates may make the product slightly different from the schematic diagram.

Quick View Relavant Files

Manual

Upgradeable Hardware

ADXL 345

Learn more

H2 Direct Extruder Upgrade Kit

Learn more

HDMI5/HDMI7

Learn more

Dual Z Upgrade Kit

Learn more

BIQU Camera

Coming soon...

Print Process Display

Hurakan Original Accessories

2GT-6mm black belt 1m
6*24mm heat break
2*4mm teflon tube 1m
E3D brass nozzles V5/V6 1.75/0.4mm
Heating aluminum block silicone
PC4-M6 black pneumatic connectors
2352350.3mm PEI spring steel sheet
235X235*1.5mm soft magnetic stickers
POM wheel with dual bearing
40W 24V 60mm white heater cartridge PH2.54-2P
60mm thermistors PH1.5-2P
Filament break detection module
3010 fan with 60mm wire XH1.5-2P terminal
4010 fan with 60mm wire XH2.54-2P terminal
4010 turbo fan with 80mm wire XH1.5-2P terminal
3010 fan with 15cm wire XH2.54-2P terminal
BIGTREETECH Mini12864 V2.0
BIGTREETECH Manta M4P V2.2
BIGTREETECH CB1 V2.2 (Hurakan)
BIGTREETECH TMC2209 V1.3 (Hurakan)
Purchase link----https://biqu.equipment/products/biqu-hurakan-original-accessories

FAQ

CA warehouse

Price

Collections

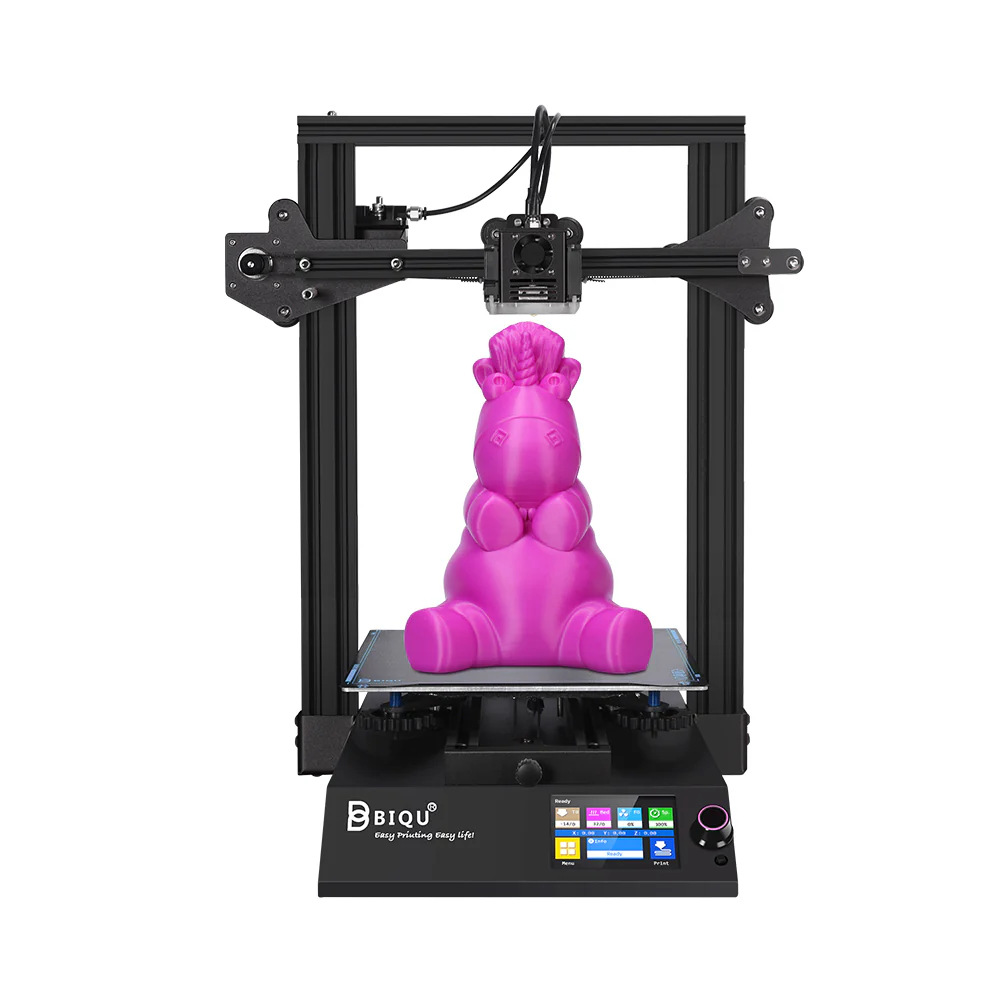

BIQU B1 3D Printer TFT35 B1 V3.0 Dual Operation System FDM 3D printer

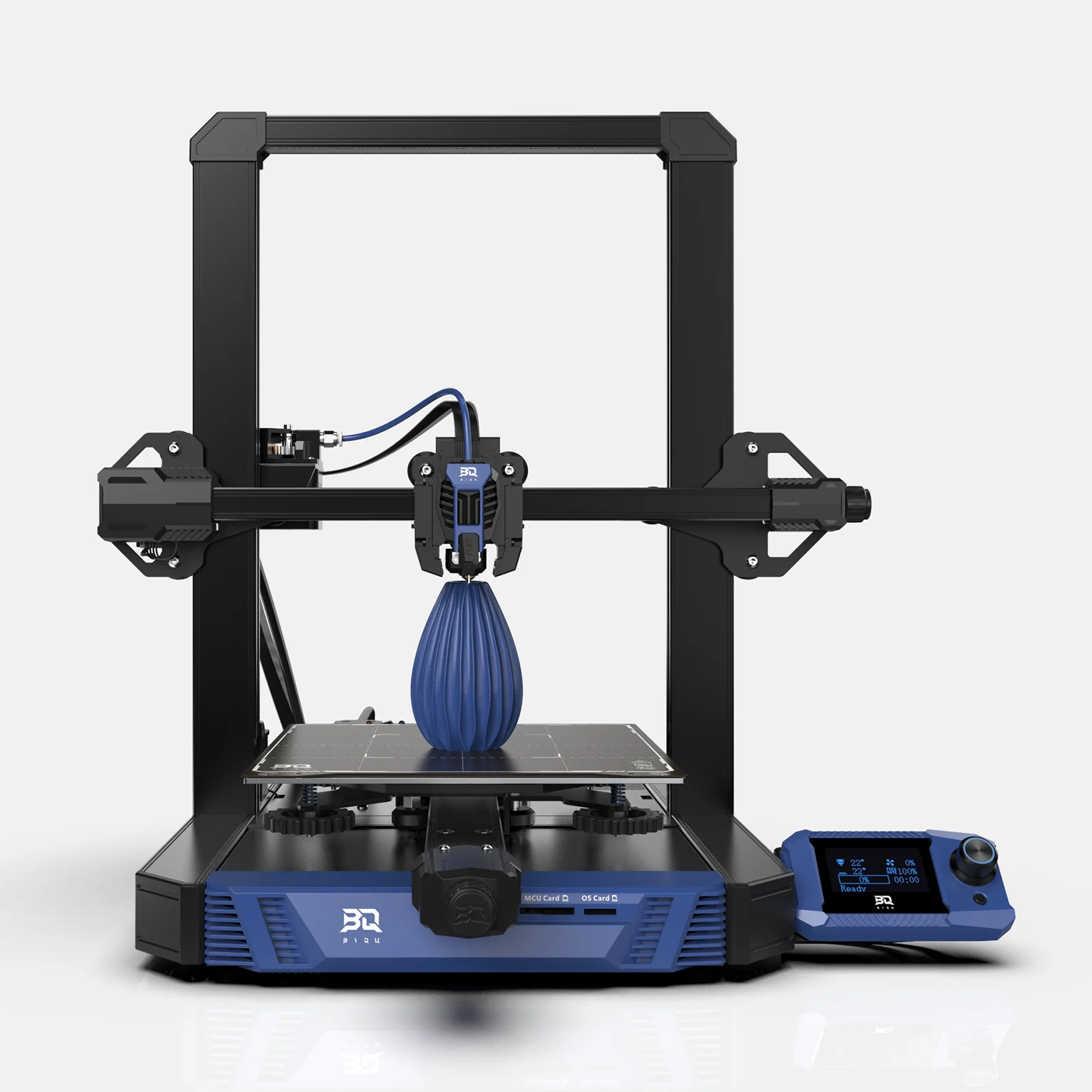

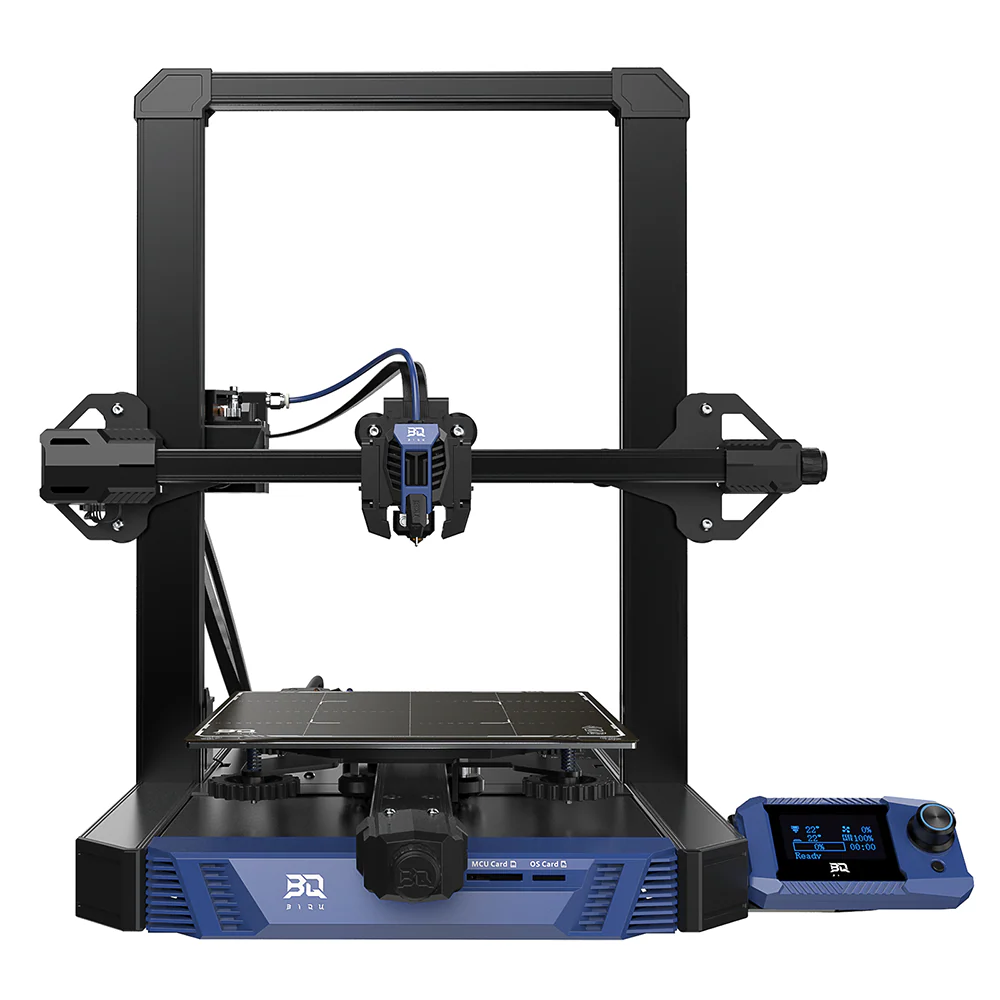

BIQU Hurakan Klipper 3D Printer
