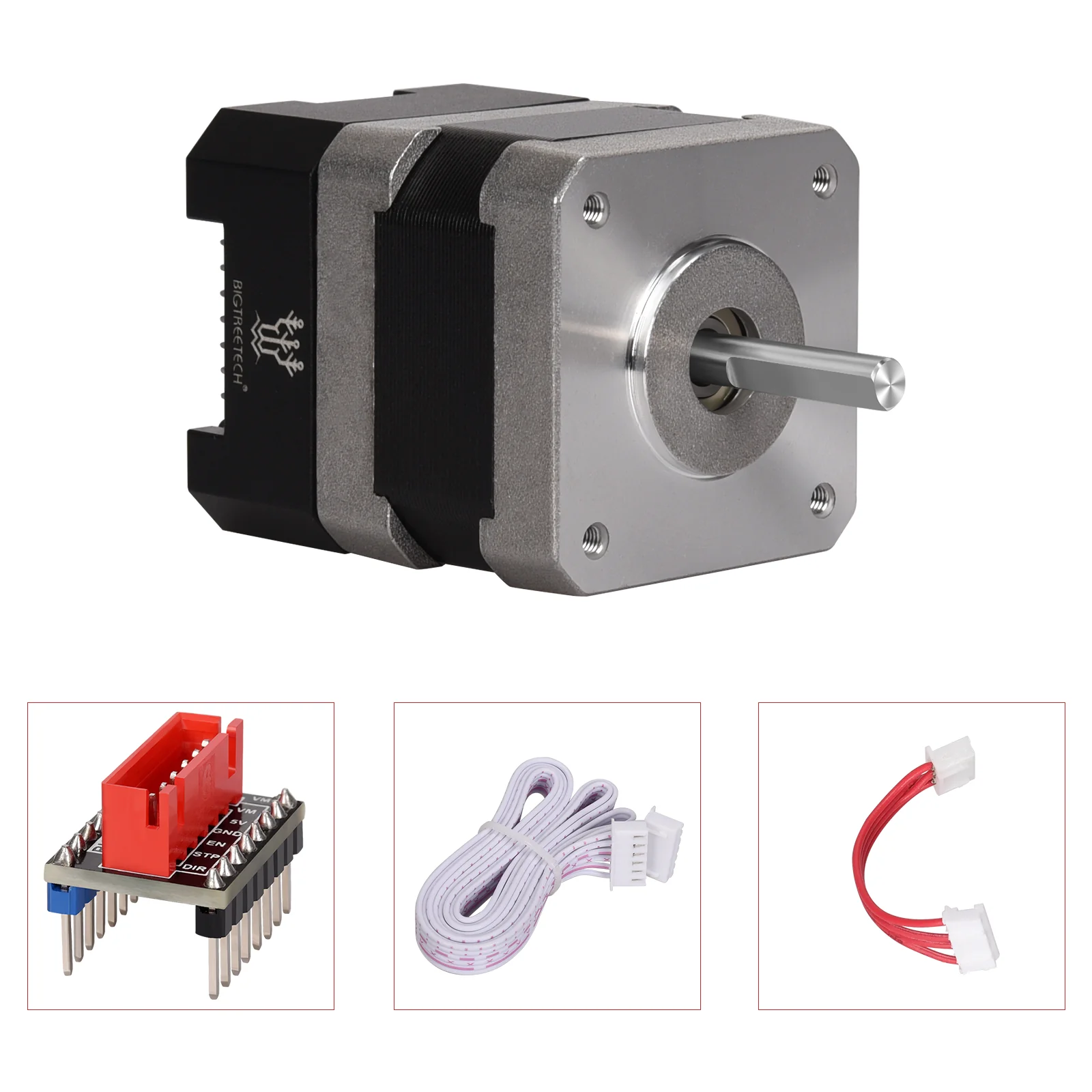

BIGTREETECH S42C v1.1 42 Stepper Motor Closed Loop Driver Board with OLED Display
Product Description:

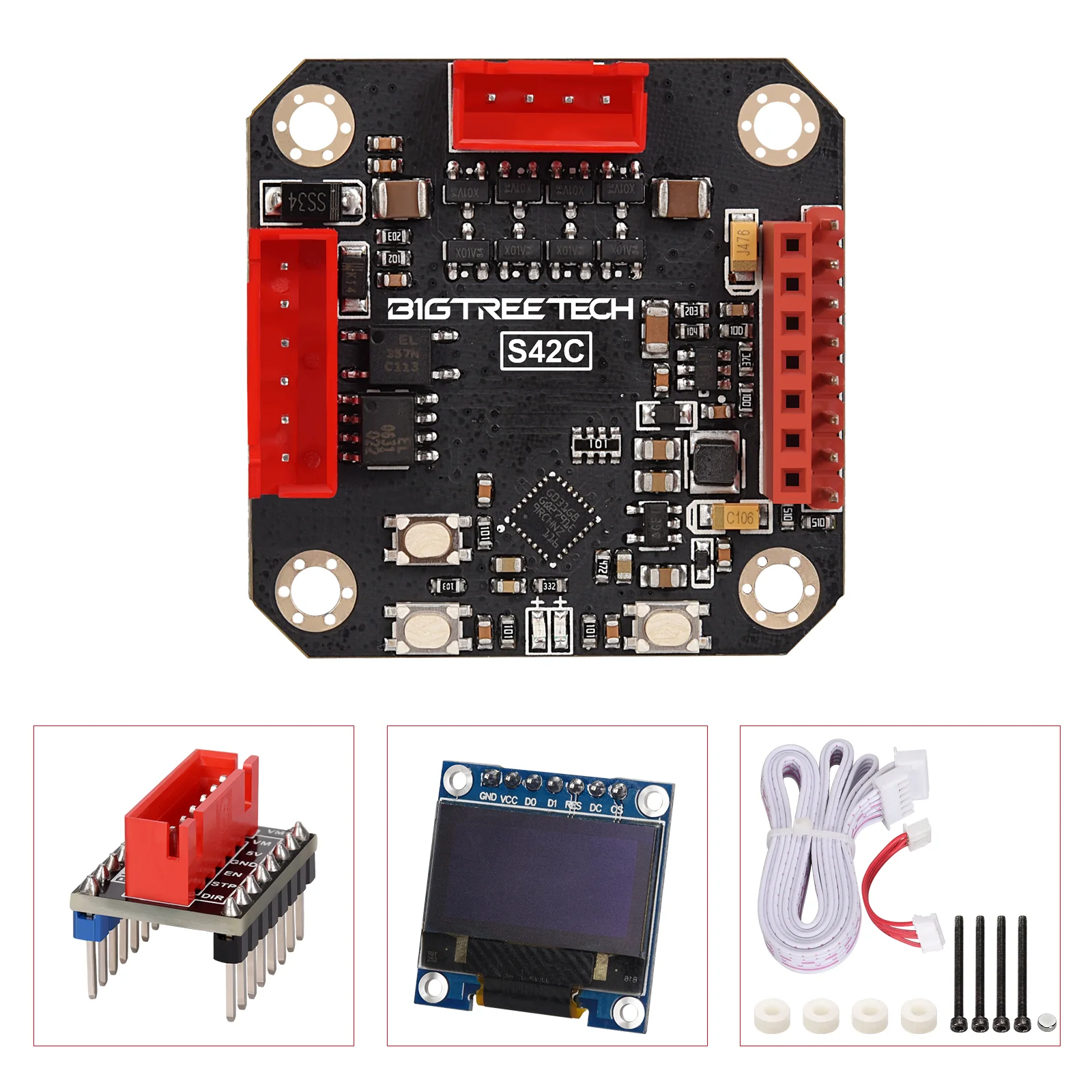

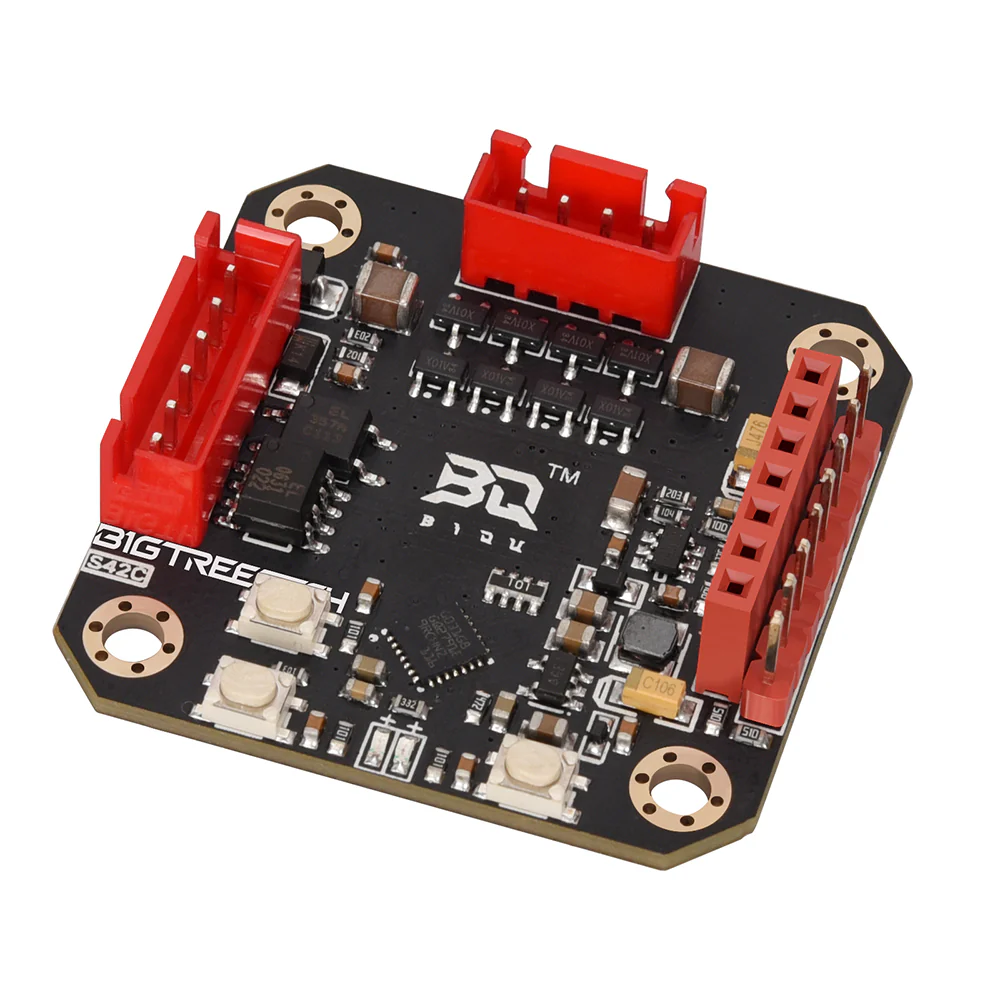

BIGTREETECH S42C is a closed-loop driver board to control the stepper motor. The main control is STM32G031G8U6 and the encoder is TLE5012B. With dual H-bridge drivers, S42C supports Step mode and UART mode. To avoid pulse loss and increase by reflecting the rotation angle of the stepper motor to the control board, compare the distance to be rotated with the actual rotation distance, calculating the error value and compensating. The driver board improves the motor performance, processing speed, and printing precision. The main control chip can detect the pulse loss caused by long-time working and then compensate so that the printer can work normally. Ā
Key Features:
-
Complete Set, Plug and Play. S42C comes as a complete set with no need for assembly or debugging, ensuring immediate use right out of the box.
-
Ensure printing accuracy when printing at high speed. Maintains accuracy with no pulse loss even at high-speed printing.
-

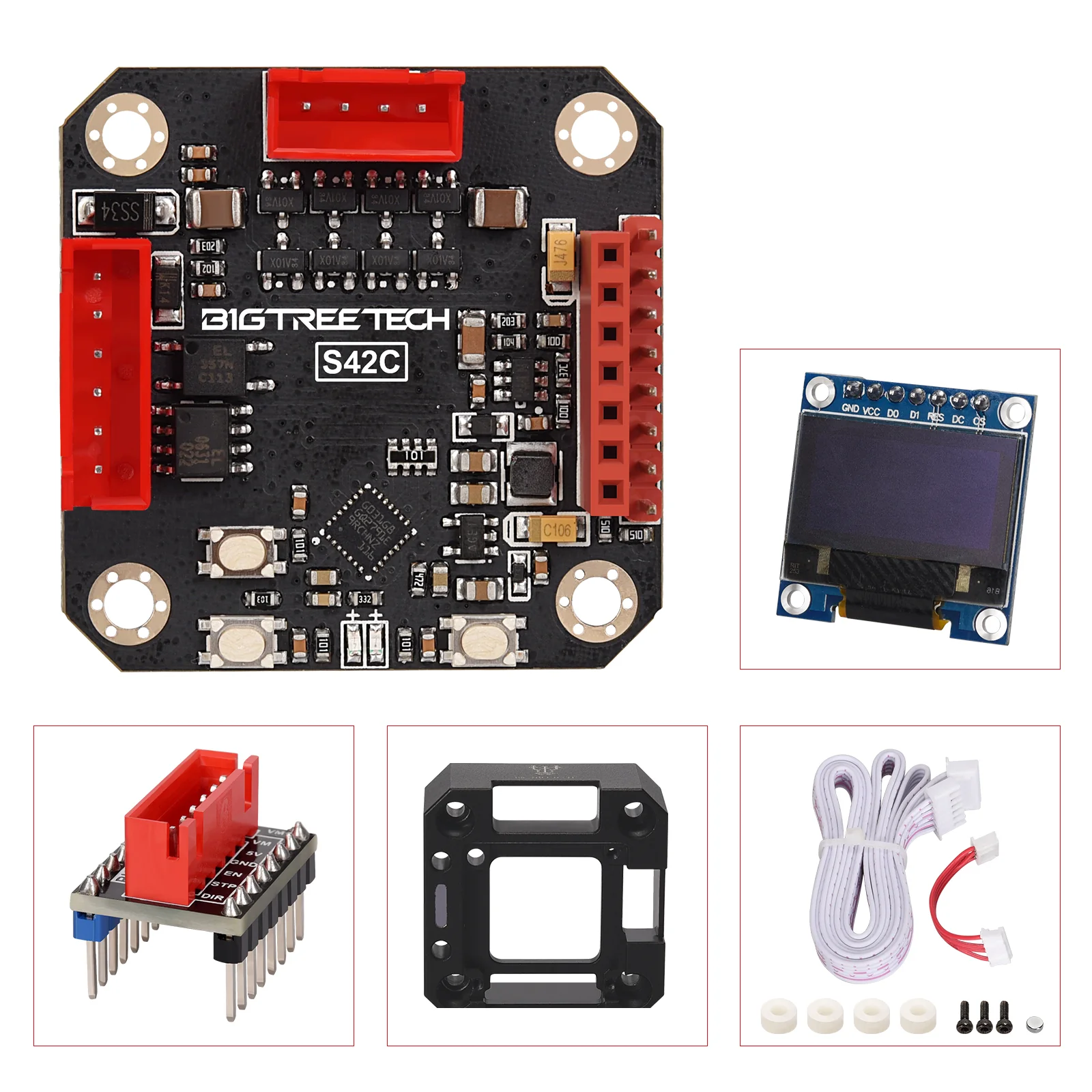

User-Friendly Interface. Equipped with a 0.96-inch OLED screen for parameter modification, enabling easy and convenient human-computer interaction.
-
Parameter Memory. Settings can be saved for future use, eliminating the need for reconfiguration.
Files:
